Controller
New - With us
Content: 100 Stück (CHF 0.06 / 1 Stück)
Content: 1000 Mililiter (CHF 0.18 / 1 Mililiter)
Content: 100 Stück (CHF 0.05 / 1 Stück)

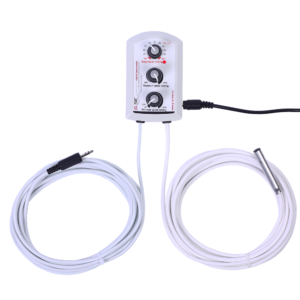

GSE, EC fan controller Min/Max and temperature
GSE, EC fan controller Min/Max and temperatureThis EC ventilation controller for exhaust fans has temperature, minimum-speed and maximum-speed settings adjustable using three knobs. It is easy to operate. The controller comes with a 4 m fan cable with a 3.5 mm 3-pole stereo jack (Can-Fan) or RJ45 connector (Primaklima, Carbonactive), plus a 4 m temperature sensor. It is supplied fully assembled and ready to use. The output is a 0–10 V or PWM (pulse-width modulation) signal, selectable via a jumper. Extremely low current consumption allows the controller to operate without a power supply, powered directly by the EC fan.Adjustment range:Temperature: 20 °C to 30 °CMinimum speed: off, 20% to -100%Maximum speed: 100% to -50%Is a power supply required?With or without a power supply? Depending on your EC fan, you need a supply of >10 VDC, >4 mA and a PWM signal. This allows the controller to operate without its own power supply. Refer to your EC fan’s technical data sheet for this information. Ruck or Can-Fan with EBM-papst motors, Primaklima and Systemair use a PWM signal.If the EC fan has 2 wires and provides Signal-GND, a power supply is required.If the EC fan has 3–4 wires and provides Signal-GND-VDC >10 V/35 mA, no power supply is required.Dimensions and technical specifications:Housing: height 90 mm, width 58 mm, height 40 mmWeight: 307 gVoltage: 12 VDCCurrent consumption: 4 mADigital sensor: 5 V; measuring range –55 °C to +125 °C (–67 °F to +257 °F)Accuracy: 0.5 °C from –10 °C to +85 °CProtection rating: IP20Package contents:Product: 1 × EC controller including sensor and fan connection cableAccessory: 1 × 12 VDC, 100 mA power supply (depending on model)
GSE, Hygrostat - controller for humidifiers/dehumidifiers 10A
GSE, Hygrostat - controller for humidifiers/dehumidifiers 10AA hygrostat, also called a humidity controller, keeps indoor humidity constant and stable.The hygrostat is connected between the humidifier (fogger) or dehumidifier and a wall socket. It has two control knobs for setting the desired humidity and selecting the hysteresis.The controller comes ready to plug in and is immediately ready for use. It consists of a fully splash-protected housing with a socket and a digital low-voltage sensor for measuring humidity. This makes it the perfect controller for damp rooms. The sensor has a 4-metre connection cable.Technical specifications:Dimensions (W × H × D): 160 × 100 × 90 mmVoltage: 230 V / 50 HzMaximum current: 10 AHumidity measurement accuracy: ±4.5% RHProtection rating: IP54Adjustment ranges:Humidity: 30% to 100%Hysteresis: dehumidifier -10% to -1% and humidifier +1% to +10%Package contents:Product: 1 × GSE hygrostat 10 A with sensor and 4 m connection cable
GSE, temperature and negative pressure controller
GSE, temperature and negative pressure controllerThe negative pressure controller is a temperature-dependent speed controller for ventilated rooms with intake and exhaust fans. It keeps room temperature and negative pressure constant to prevent odours from escaping. It is easy to operate: the desired temperature, minimum speed and negative pressure are set using three knobs.The fan controller can also be used with an exhaust fan alone when air is drawn in naturally.The fan controller is supplied as a complete unit, ready to use. This reliable controller comes in a waterproof housing, with connectors with hinged covers and a digital low-voltage sensor, making it the ideal controller for damp rooms. The sensor is supplied with a 4-metre cable, which can be extended to 50 metres if required.Dimensions and technical specifications:Housing (W × H × D): 130 × 80 × 70 mmFan controller (W × H × D): 160 × 100 × 90 mmRating: 2 A / 2 × 200 W / TRIAC 2 × 16 AVoltage: 230 V / 50 HzDigital sensor: 5 V; measuring range -55 °C to +125 °C (-67 °F to +257 °F)Accuracy: 0.5 °C from -10 °C to +85 °CProtection rating: IP54Adjustment options:Temperature: 20 °C to -30 °CMinimum speed: off, 20% to -100%Negative pressure: 100% to -50%Package contents:Product: 1 × GSE temperature and negative pressure controller including sensor and 4 m cable
LAN Cable - 10 m, RJ45
Blue LAN cable with RJ45 connectors and a length of 10 m.Properties:Length: 10 mColour: BlueConnectors: 2 × RJ45 plugsScope of delivery:1 × LAN cable, 10 m, blue
LAN Cable - 2 m, RJ45
LAN cable with RJ45 connectors and a length of 2 m.Properties:Length: 2 mConnectors: 2 × RJ45 plugsScope of delivery:1 × LAN cable, 2 m
LAN Cable - 5 m, RJ45
Blue LAN cable with RJ45 connectors and a length of 5 m.Properties:Length: 5 mColour: BlueConnectors: 2 × RJ45 plugsScope of delivery:1 × LAN cable, 5 m, blue
LAN Cable Splitter - RJ45
RJ45 Y-adapter for splitting a network connection. The compact LAN cable splitter is suitable for network cabling at home or in the office and helps keep cable routing tidy.Properties:Connector type: RJ45Design: Y-adapter / splitterApplication: Home and office network cablingMaterial: Designed for everyday useNote: A passive RJ45 splitter does not replace an active network switch. Whether multiple devices can be used independently and simultaneously depends on the existing cabling and network components.Scope of delivery:1 × LAN cable splitter / RJ45 Y-adapter
PrimaKlima - ECTC-1M-Digital, RJ45 Fan Controller
The PrimaKlima ECTC-1M-Digital is a two-channel fan controller for intake and exhaust air with an RJ45 interface.The display makes all important information easy to read. One-button control provides quick access to temperature settings and minimum and maximum fan output.The controller can operate in automatic or manual mode. Compatible fans and controllers have RJ45 ports and can be connected easily using a standard Ethernet cable.Properties:Channels: 2Interface: RJ45Temperature control: AdjustableMinimum airflow: AdjustableMaximum airflow: AdjustableOperating mode: Automatic or manualScope of delivery:1 × PrimaKlima ECTC-1M-Digital RJ45 fan controller
ROOTiT - Digital thermostat for heating mats
The ROOT!T thermostat is suitable for controlling heating mats and heating devices up to 1000 W.Manufacturer information:The ROOT!T thermostat allows the optimum temperature of heating mats to be selected and controlled, accelerating rooting and maximising success.Control: Precise control of heating devices, heating cables and heating matsOperation: Very easyPlug and socket: Schuko on input and outputTemperature sensor cable length: 1.8 mDisplay: Robust and digitalTemperature display: Actual valueSuitable heating output: Up to 1000 WTechnical data:Control range: 10–30 °CPower supply: 230 V / 50 HzMaximum switching capacity: 1000 WSwitching voltage: 230 VMaximum switching current: 4.2 AOperating principle: ElectronicPower cable length: Over 1 mImportant note:The device is equipped with European plugs. Swiss plugs must be ordered separately if required.Scope of delivery:Product: 1 × ROOT!T digital thermostat for heating mats
SMSCOM, NTC temperature sensor for Smart Controller MK2 EU
NTC temperature sensor for the SMSCOM Smart Controller MK2 EUThis NTC temperature sensor is designed for the SMSCOM Smart Controller MK2 EU. It measures room temperature and enables the connected controller to regulate fan speed according to the set temperature.This item is the separate temperature sensor. The Smart Controller is not included.UseConnect the temperature sensor to the Smart Controller and position it in the centre of the room. Do not install it directly in the fan’s airflow, to ensure reliable operation.PropertiesProduct: NTC temperature sensorCompatibility: SMSCOM Smart Controller MK2 EUFunction: Measures room temperature for temperature-dependent fan regulation by the controllerVersion: Separate sensorPackage contentsProduct: 1 × SMSCOM NTC temperature sensor for Smart Controller MK2 EU
SMSCOM, Smart Controller MK2 EU
The SMSCOM Smart Controller MK2 is a compact ventilation controller in a plug-in housing. The maximum current is 6.5 amps. The SMSCOM Smart Controller is electronically regulated and offers a simple and accurate way to achieve the right temperature in your room (with NTC connected). The SMSCOM Smart Controller continuously regulates the speed of your fans and maintains the correct temperature.Manufacturer’s description:How it works:The Smart Controller works with our Motion Flow Software. This means the Smart Controller responds completely differently from other types of controllers. When you first install the Smart Controller, the system needs 5 to 10 minutes to scan the room so that the fan speed can be determined correctly. The controller then knows exactly how fast the fan needs to run to maintain the desired temperature. From this point on, the Smart Controller automatically adjusts the fan speed to ensure the set temperature is maintained continuously. The Smart Controller offers more than 60 different speed settings, providing smooth fan speed regulation and temperature control with precision unmatched by any other type of controller. In addition to highly precise temperature control, this new technology ensures reduced fan noise and a longer fan service life. The Smart Controller is ready to use immediately, so no wiring is required. Simply connect your fan and set the desired temperature and minimum fan speed: the Smart Controller takes care of everything else.Using the device:Connect the temperature sensor to the Smart 1Connect the Smart Controller to a mains socket.Install the temperature sensor in the centre of the room.Connect your fan to the Smart Controller.Set the desired minimum fan speed.2Set the desired temperature.1 Without a temperature sensor, the Smart functions as a manual fan controller.2Minimum fan speed: This is the lowest speed at which your fan operates. The lower the speed, the larger the operating range in which the fan has to work. We recommend choosing the lowest setting. This means the fan operates within a range between slow idle and maximum speed to maintain a constant room temperature. If necessary, the lowest speed can be adjusted to suit your fan type.The Smart Controller now scans your room. PLEASE BE PATIENT! This process can take 5 to 10 minutes!!During scanning, the Smart Controller runs at 100% for a few seconds and then at the fan’s lowest speed setting. After 5 to 10 minutes, the controller operates at the correct speed and no further manual adjustments are required. The Smart Controller automatically makes adjustments as needed to maintain the temperature.Important noteDo not install the temperature sensor directly in the fan’s airflow. This is important to ensure reliable operation.Connecting fans that exceed the power limit of 5A/1000 watts will cause permanent damage to the device.We accept no liability for damage or risks resulting from improper use or use that deviates from the product specification.Package contents:Product: 1 × SMSCOM Smart Controller MK2 EU
SMSCOM, Smart Controller MK2 EU - with temperature sensor
The SMSCOM Smart Controller MK2 is a compact ventilation controller in a plug-in housing. The maximum current is 6.5 amps. The SMSCOM Smart Controller is electronically regulated and offers a simple and accurate way to achieve the right temperature in your room (with NTC connected). The SMSCOM Smart Controller continuously regulates the speed of your fans and maintains the correct temperature.Manufacturer’s description:How it works:The Smart Controller works with our Motion Flow Software. This means the Smart Controller responds completely differently from other types of controllers. When you first install the Smart Controller, the system needs 5 to 10 minutes to scan the room so that the fan speed can be determined correctly. The controller then knows exactly how fast the fan needs to run to maintain the desired temperature. From this point on, the Smart Controller automatically adjusts the fan speed to ensure the set temperature is maintained continuously. The Smart Controller offers more than 60 different speed settings, providing smooth fan speed regulation and temperature control with precision unmatched by any other type of controller. In addition to highly precise temperature control, this new technology ensures reduced fan noise and a longer fan service life. The Smart Controller is ready to use immediately, so no wiring is required. Simply connect your fan and set the desired temperature and minimum fan speed: the Smart Controller takes care of everything else.Using the device:Connect the temperature sensor to the Smart 1Connect the Smart Controller to a mains socket.Install the temperature sensor in the centre of the room.Connect your fan to the Smart Controller.Set the desired minimum fan speed.2Set the desired temperature.1 Without a temperature sensor, the Smart functions as a manual fan controller.2Minimum fan speed: This is the lowest speed at which your fan operates. The lower the speed, the larger the operating range in which the fan has to work. We recommend choosing the lowest setting. This means the fan operates within a range between slow idle and maximum speed to maintain a constant room temperature. If necessary, the lowest speed can be adjusted to suit your fan type.The Smart Controller now scans your room. PLEASE BE PATIENT! This process can take 5 to 10 minutes!!During scanning, the Smart Controller runs at 100% for a few seconds and then at the fan’s lowest speed setting. After 5 to 10 minutes, the controller operates at the correct speed and no further manual adjustments are required. The Smart Controller automatically makes adjustments as needed to maintain the temperature.Important noteDo not install the temperature sensor directly in the fan’s airflow. This is important to ensure reliable operation.Connecting fans that exceed the power limit of 5A/1000 watts will cause permanent damage to the device.We accept no liability for damage or risks resulting from improper use or use that deviates from the product specification.Package contents:Product: 1 × SMSCOM Smart Controller MK2 EU with temperature sensor
Nothing found? Our tips for you...
Content: 100 Stück (CHF 0.03 / 1 Stück)
